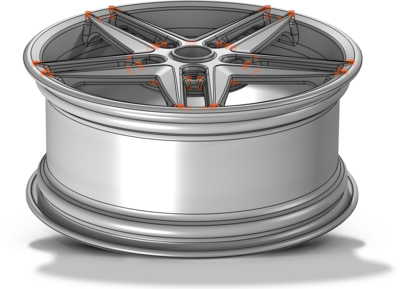

Virtual Operation on a Wheel Rim Geometry

Model ID: 14317


This tutorial shows how to perform virtual geometry operations on an imported CAD geometry. These virtual operations, such as form composite entities or ignore entities can help to improve the mesh and reduce the total element number.

This model was built using the following:

COMSOL Multiphysics
  • models.mph.wheel_rim.pdf *
  • wheel_rim.mph *
  • wheel_rim.mphbin *

请先登录您的 COMSOL Access 帐户,然后下载文件。*
