Substrate Integrated Waveguide

Model ID: 12127

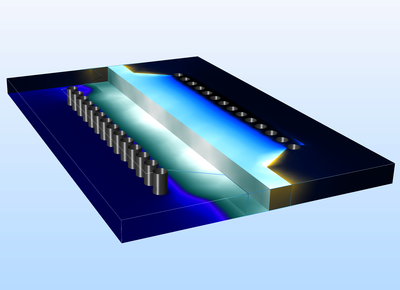

A waveguide-type structure can be fabricated on a substrate by adding vias between the microstrip line and the ground plane. Such a device will behave as a high-pass filter and is attractive because it is easy to fabricate. A model is set up that shows the S-parameters as a function of frequency. A sharp cutoff is shown at the expected frequency.

This model was built using the following:

RF Module
