Rat Race Coupler (180 Degree Ring Hybrid)
Model ID: 11739

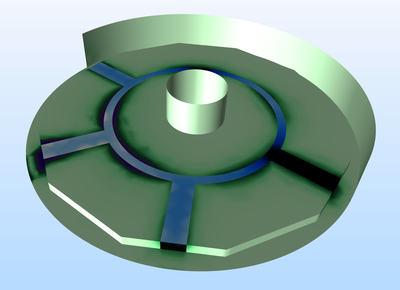

A 180° Ring Hybrid (Rat-Race Coupler) is a four-port network with 180° phase difference between two ports. It is cheaper to manufacture this type of microstrip line component compared to a wave guide 180° hybrid junction, so called magic-T. The objective of this model is to compute the S-parameters and to observe the matching, isolation, and coupling around the operating frequency.
This model was built using the following:RF Module
