Plasmonic Wire Grating
Model ID: 10032

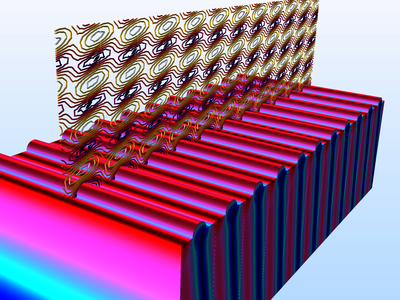

A plane wave is incident on a wire grating on a dielectric substrate. Coefficients for refraction, specular reflection, and first order diffraction are all computed as functions of the angle of incidence.
The model is set up for one unit cell of the grating, flanked by Floquet boundary conditions describing the periodicity. As applied, this condition states that the solution on one side of the unit equals the solution on the other side multiplied by a complex-valued phase factor. The phase shift between the boundaries is evaluated from the perpendicular component of the wave vector. Because the periodicity boundaries are parallel with the y-axis, only the x-component is required. Note that due to the continuity of the field, the phase factor will be the same for the refracted and reflected beams as for the incident wave.
