Modeling of Negative Refractive Index

Model ID: 12583

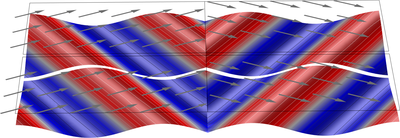

It is possible to engineer the structure of materials such that both the permittivity and permeability are negative. Such materials are realized by engineering a periodic structure with features comparable in scale to the wavelength. It is possible to model both the individual unit cells of such a material, as well as to model to properties of a bulk negative index material. This example demonstrates the correct way to model a metamaterial domain with bulk negative permittivity and permeability.

This model was built using the following:

RF Module
