Large Deformation Beam

Model ID: 204

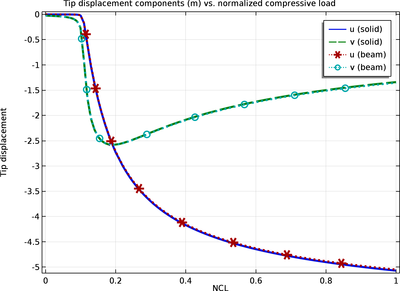

This example studies the deflection of a cantilever beam undergoing very large deflections. In addition, a linearized buckling analysis of the structure is also performed.

The model comes from Section 5.2 of NAFEMS Background to Finite Element Analysis of Geometric Non-linearity Benchmarks.
