Gate Valve in Pipe Branch

Model ID: 12707

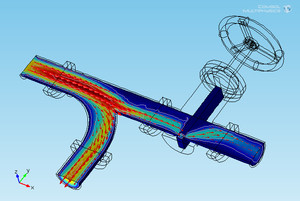

A gate valve in a piping branch point is simulated using high viscosity in the gate itself. A parametric run varies gate position from 100% open to fully closed

This model was built using the following:

COMSOL Multiphysics
