E-core Transformer Using Multi-Turn Coil Domains

Model ID: 14123

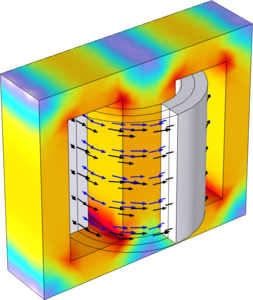

This is the transient model of a single phase E-core transformer using a Multi-Turn Coil Domain. The model includes the effect of a nonlinear B-H curve in the core and shows how to connect the transformer model to the external circuits using Electric Circuit interface. The simulation is performed for two different cases; the first one with a unity turn ratio and second one with a turn ratio of one thousand.

This model was built using the following:

AC/DC Module
