Convective Flow in a Heat Exchanger Plate

Model ID: 12153

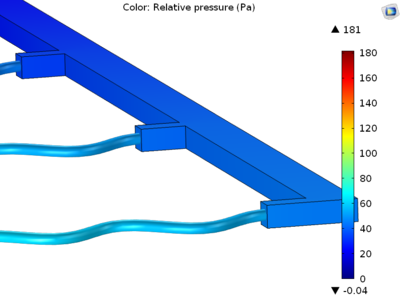

This example models flow in a heat exchanger plate by coupling a Laminar Flow interface to a Pipe Flow interface. By the use of the Pipe Flow interface to model the flow in the microchannels, the problem size is significantly reduced.

Apart from the Pipe Flow licence also a licence supporting the Laminar Inflow feature is required to run the model.

This model was built using the following:

Pipe Flow Module
