Axial Magnetic Bearing Using Permanent Magnets

Model ID: 14367

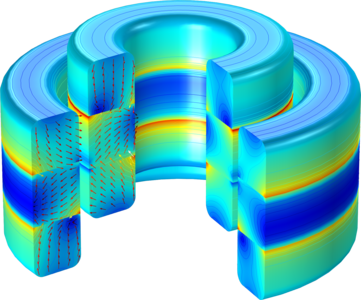

Permanent magnet bearings are used in turbo machinery, pumps, motors, generators, and flywheel energy storage systems, to mention a few application areas; contactless operation, low maintenance, and the ability to operate without lubrication are some key benefits compared to conventional mechanical bearings. This model illustrates how to calculate design parameters like magnetic forces and stiffness for an axial permanent magnet bearing.

This model was built using the following:

AC/DC Module
